ACC-024 · Firefighting Payload

25 mm / 40 mm configurations 10-15 m effective nozzle range Quick-release installation

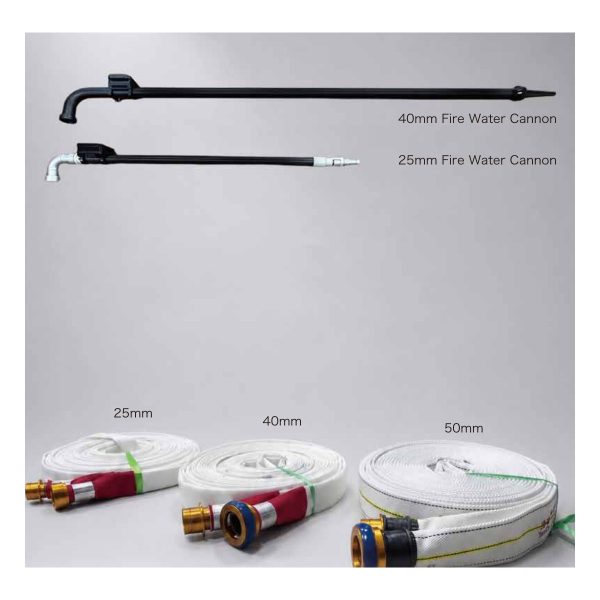

JZI YWG-25 / YWG-40 Fire Water Cannon for DJI FlyCart

A drone-mounted water-cannon solution offered in 25 mm and 40 mm configurations for high-altitude firefighting missions using compatible DJI transport-series platforms.

Quick Specifications

Models: YWG-25 (FC30) / YWG-40
Nozzle Range: 10-15 m
Hose Diameter: 25 mm / 40 mm by variant
Installation: Quick-release
Pressure Resistance: 2.5 MPa
Compatible Models: FC100 / FC200 / T70 / T70P / T100 / T100S

Request a Quote WhatsApp

Technical Specifications

YWG-40 Dimensions: 2000 x 52 x 130 mm
YWG-40 Spray Gun Length: 2000 mm
YWG-40 Spray Gun Weight: Approx. 2.5 kg including quick-release structure
YWG-40 Nozzle Pipe Caliber: 20 mm
YWG-40 Hose Diameter: 40 mm
YWG-40 Spraying Angle: Manually adjustable
YWG-40 Fire Extinguishing Agent: Water-based fire extinguishing agent
YWG-40 Recommended Operating Height: 0-70 m for T70/T100/FC100; 0-150 m for FC200
YWG-40 Hose Length: 90 m for T70/T100/FC100; 150 m for FC200
YWG-40 Burst Pressure: 3.2 MPa
YWG-25 Product Name: Airborne Fire-Hose Kit
YWG-25 Spray Gun Length: 1950 mm
YWG-25 Spray Gun Weight: 933 g
YWG-25 Hose Diameter: 25 mm
YWG-25 Total Weight With Hose Coupling: 9.65 kg (90 m)
YWG-25 Fire Extinguishing Agent: Fire-fighting foam / water-based fire-fighting agent
YWG-25 Recommended Operating Altitude: 0-70 m
YWG-25 Hose Length: 90 m
Hose Connection: One-piece / integral forged coupling

Key Features

Quick-release deployment
10-15 m catalog-listed effective nozzle range
25 mm and 40 mm configurations
Manual spray-angle adjustment
Designed for compatible DJI transport-series platforms

Applications

High-rise building firefighting
Fire response in narrow alleys
Building and forest fire suppression

Compatibility & Product Matching

The catalog lists FC100, FC200, T70, T70P, T100 and T100S as compatible platforms. Variant-specific hose sizes, weights and operating-height values differ; confirm the required configuration before ordering.
