ACC-004 · Camera Module

Black-light full-color analog imaging F1.0 large-aperture lens AI ISP proprietary noise-reduction algorithm

DF-C606-SL Black Light Full-Color Analog Camera Module

Designed for compact UAV imaging payloads requiring analog full-color video, wide-angle lens options and low-light operation.

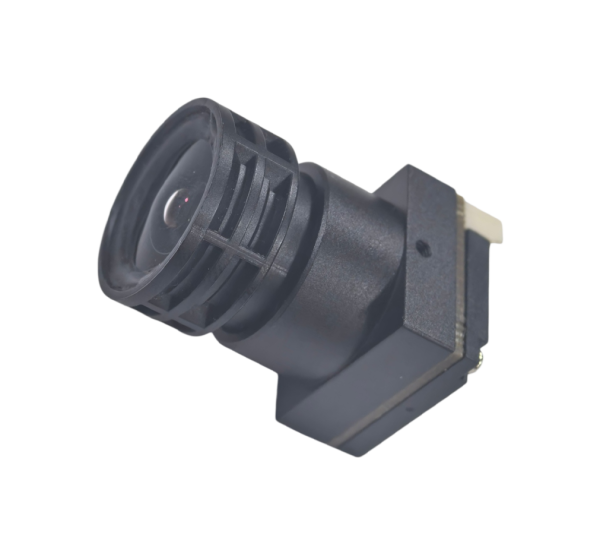

DF-C606-SL black light full-color analog camera module

Quick Specifications

Model
DF-C606-SL
Image Sensor
1/1.8-inch 2.0MP CMOS SC285
Lens
2.8 mm / 4.0 mm; 4.0 mm default
Aperture
F1.0
Video Output
CVBS P/N switchable
Voltage
5-30 V
Request a Quote WhatsApp

Technical Specifications

Analog Video Output
720x576 / 640x480
Pixel Size
4.0 um, BSI
Focal Length
Optional 2.8 mm / 4.0 mm; 4.0 mm default
Aperture
F1.0
Field of View
150° diagonal with 2.8 mm lens; 110° with 4 mm lens
Minimum Illumination
Color: 0.001 Lux @ F1.0, AGC ON; B&W: 0.0001 Lux @ F1.0, AGC ON
Wide Dynamic Range
Supported, >=120 dB
White Balance
Auto / Indoor / Outdoor / Manual
Analog Output
CVBS P/N switchable
OSD Menu Interface
Optional 1-wire menu control
Frame Rates
60 / 50 / 30 / 25 fps
Power Consumption
70 mW
Weight
20 g
Dimensions
19 x 19 x 31 mm
Operating Environment
-40°C to 75°C; 0%-90% RH, non-condensing

Key Features

  • Black-light full-color analog imaging
  • F1.0 large-aperture lens
  • AI ISP proprietary noise-reduction algorithm
  • Wide-angle lens options up to 150° diagonal
  • Supports 60/50/30/25 fps and OSD menu

Applications

  • Seaside environments
  • Aerial / sky observation
  • Tunnel environments
  • Forest environments

Compatibility & Product Matching

Confirm lens option, analog video standard and mechanical integration before ordering.
