ACC-006 · Camera Module

Starlight full-color analog imaging 1/2.7-inch 2MP CMOS SC285 sensor Optional 2.8 mm / 4.0 mm lenses

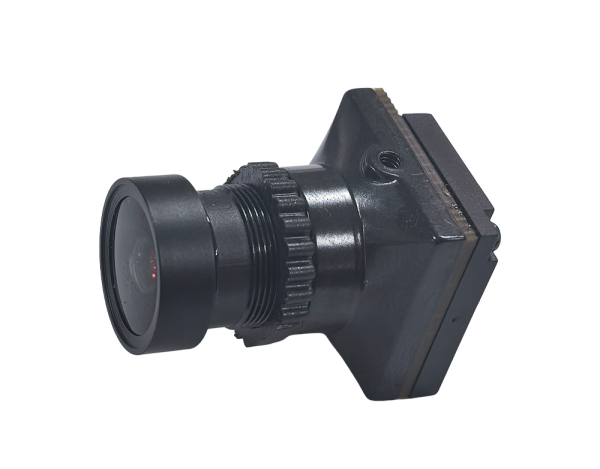

DF-C601 Starlight Full-Color Analog Camera Module

A compact UAV analog imaging module for starlight full-color applications with wide-angle lens options and high dynamic range.

Quick Specifications

Model: DF-C601
Image Sensor: 1/2.7-inch 2.0MP CMOS SC285
Lens: 2.8 mm / 4.0 mm; 4.0 mm default
Aperture: F1.4
Video Output: CVBS P/N switchable
WDR: >=120 dB

Request a Quote WhatsApp

Technical Specifications

Analog Video Output: 720x576 / 640x480
Pixel Size: 2.9 um, BSI
Focal Length: Optional 2.8 mm / 4.0 mm; 4.0 mm default
Aperture: F1.4
Field of View: 150° diagonal with 2.8 mm lens; 110° with 4 mm lens
Minimum Illumination: Catalog states Color: 0.001 Lux @ F1.0, AGC ON; B&W: 0.0001 Lux @ F1.0, AGC ON
Wide Dynamic Range: Supported, >=120 dB
White Balance: Auto / Indoor / Outdoor / Manual
Analog Output: CVBS P/N switchable
Menu Interface: Optional 1-wire menu control
Frame Rates: 60 / 50 / 30 / 25 fps
Power Consumption: 70 mW
Weight: 20 g
Dimensions: 19 x 19 x 31 mm
Operating Environment: -40°C to 75°C; 0%-90% RH, non-condensing

Key Features

Starlight full-color analog imaging
1/2.7-inch 2MP CMOS SC285 sensor
Optional 2.8 mm / 4.0 mm lenses
Wide dynamic range >=120 dB
Supports 60/50/30/25 fps and OSD/menu control

Applications

Seaside environments
Aerial / sky observation
Tunnel environments
Forest environments

Compatibility & Product Matching

Catalog lists an F1.4 aperture while its minimum-illumination test values are stated at F1.0. Confirm the required lens configuration and performance before ordering.
