ACC-035 · Exterior Wall Cleaning Payload

M400-compatible cleaning payload Single / dual nozzle options 7-10 m spray distance

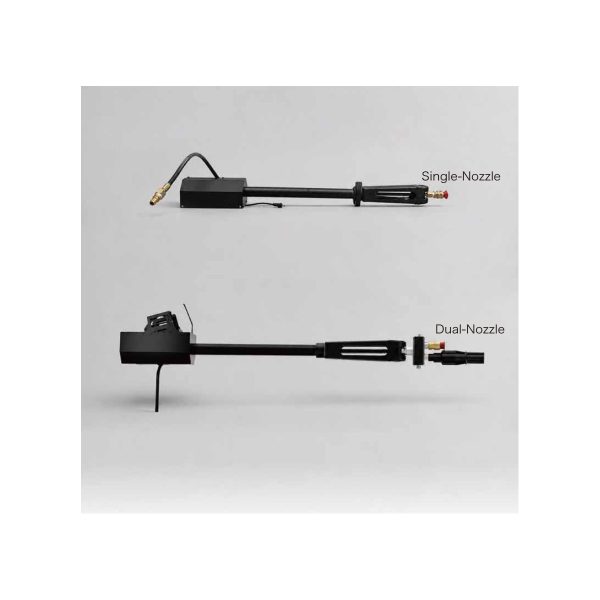

JZI SP-3 M400 Exterior Wall Cleaning Kit - Single / Dual Nozzle

A lightweight M400-mounted cleaning system for commercial facades and high-rise curtain walls, supporting high-pressure water and, in the dual-nozzle configuration, foam-cleaning modes.

Quick Specifications

Model: SP-3
Aircraft: DJI M400
Spraying Distance: 7-10 m
Operating Temperature: -20°C to 45°C
Control: PSDK
Recommended Flight Altitude: <=120 m

Request a Quote WhatsApp

Technical Specifications

Dual-Nozzle Listed Dimensions: 970 x 94 x 131 mm
Dual-Nozzle Parameter-table Weight: Approx. 1.3 kg
Dual-Nozzle Peak Power: <=30 W
Dual-Nozzle Interface: DJI M400 E-Port V interface
Dual-Nozzle Water Pipe: 4 mm inner diameter / 8.6 mm outer diameter; 20 MPa pressure resistance
Dual-Nozzle Modes: 30° left-right cross swing; fixed-angle forward/left/right/up/down; aerial switching between straight-water and foam nozzles
Single-Nozzle Listed Spray Gun Size: 830 x 94 x 131 mm
Single-Nozzle Listed Weight: 1.4 kg
Single-Nozzle Peak Power: <=50 W
Single-Nozzle Interface: DJI M400 E-Port V2 interface
Single-Nozzle Modes: 30° left-right cross swing / fixed angle / forward / left / right
Working Voltage: 24 V

Key Features

Single- and dual-nozzle configurations
7-10 m spraying distance
PSDK / DJI Pilot 2 control
Cross-swing cleaning pattern
High-pressure facade-cleaning design

Applications

Irregular building-facade cleaning
Commercial-complex exterior-wall cleaning
Super high-rise curtain-wall cleaning

Compatibility & Product Matching

Catalog applies the SP-3 model name to multiple configurations. It also states approximately 1.15 kg for the dual-nozzle unit in narrative text, while the parameter table lists approximately 1.3 kg; another listed configuration is 1.4 kg. Confirm the exact nozzle version, interface and weight before ordering.
