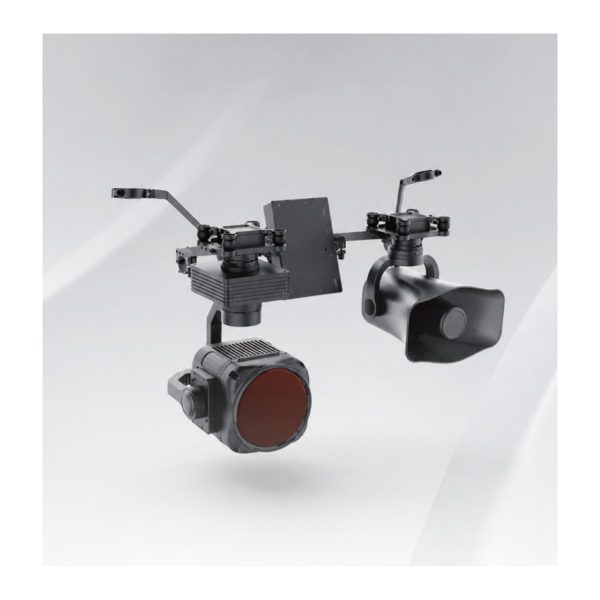

JZI Loudspeaker & 30000lm Lighting Kit for DJI FlyCart

A dual-function airborne payload for voice broadcast and high-output illumination in night rescue, patrol, traffic management and emergency operations.

Quick Specifications

Sound Pressure: Up to 120 dBA
Broadcast Distance: 500 m
Searchlight Output: 30000 lm
Searchlight Power: 300 W
Pitch Adjustment: 0°-90°
Compatible Models: FC30 / FC100

Request a Quote WhatsApp

Technical Specifications

Loudspeaker Dimensions: 173.5 x 140 x 90 mm
Loudspeaker Weight: Approx. 0.45 kg
Loudspeaker Peak Power: <=50 W
Broadcast Modes: Real-time voice, audio recording, audio-file playback, TTS; loop playback supported
Audio Formats: MP3 / WAV / FLAC / AAC / WMA
Communication Link: DJI UAV dedicated link
Searchlight Dimensions: 168 x 157 x 205 mm
Searchlight Weight: 1.28 kg; airborne quick-release weight 72 g
Supply Voltage: 40-80 V
Operating Temperature: -20°C to 45°C
Output FOV: 16.7°
Light Efficiency: 100 lm/W at 300 W
Spot Diameter: 15 m at 50 m; 30 m at 100 m
Exploration Area: 176 m² at 50 m; 706 m² at 100 m

Key Features

120 dBA loudspeaker
30000 lm high-brightness searchlight
Real-time voice / recording / TTS modes
0°-90° electric pitch adjustment
PSDK integrated control

Applications

Night public-security patrol
Emergency search and rescue
Traffic law enforcement and evacuation
Large-scale event security

Compatibility & Product Matching

Catalog compatible models: FC30 and FC100. Confirm aircraft power/interface and mounting before ordering.
