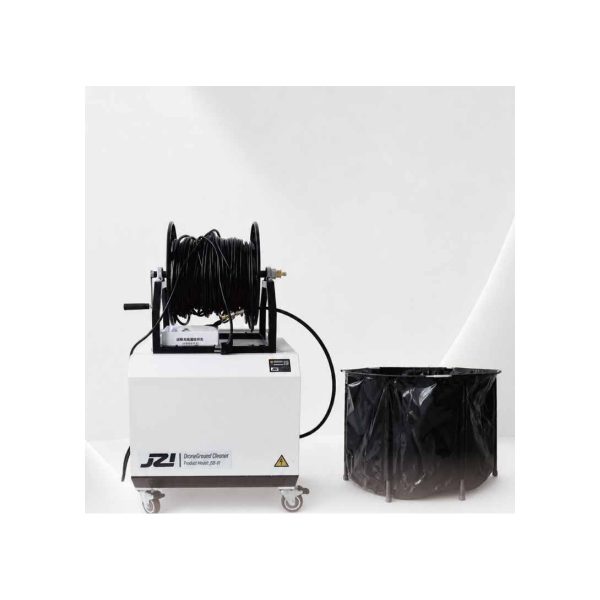

JZI JSB-02 Integrated Ground Station Cleaning System

A mobile high-pressure ground station designed to support exterior-wall, floor, vehicle and industrial cleaning operations with large water capacity and remote start control.

Quick Specifications

Model: JSB-02
Dimensions: 1060 x 640 x 590 mm
Weight: 75 kg
Water Tank: 300 L
Detergent Tank: 10 L
Pump Pressure: 15 MPa

Request a Quote WhatsApp

Technical Specifications

Parameter-table Pump Flow: 11 L/min
Parameter-table Power: 3.3 kW
Detergent Flow: Manual adjustment
Wheels: 3-inch brake-equipped universal wheels
Starting Mode: Remote-control start
Control Mode: Remote switching between clean water / mixed clean water and detergent
Catalog Narrative Difference: Narrative text elsewhere states 3.5 kW and 10 L/min, while the parameter table lists 3.3 kW and 11 L/min

Key Features

300 L water capacity
10 L detergent tank
15 MPa high-pressure cleaning
Remote start and fluid-mode switching
Mobile brake-caster design

Applications

Curtain-wall cleaning
Floor cleaning
Vehicle washing
Industrial-equipment cleaning

Compatibility & Product Matching

This is a ground support cleaning system rather than an airborne payload. The catalog contains a power/flow discrepancy: narrative text states 3.5 kW and 10 L/min; the parameter table states 3.3 kW and 11 L/min. This listing uses the parameter-table values as primary and preserves the discrepancy here.
