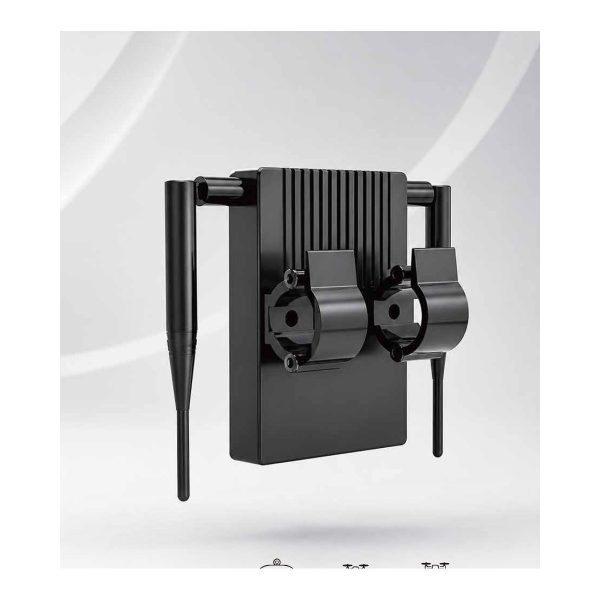

JZI JLD-2 / JLD-4 Multi-Aircraft Hoisting Kit

A coordinated heavy-lift hoisting system for compatible DJI cargo-drone platforms, supporting dual- and quad-aircraft missions with one-click formation functions.

Quick Specifications

Models: JLD-2 / JLD-4
Max Load: 160 kg dual-drone / 320 kg quad-drone
Lifting Rope: 100 m
Working Voltage: 28-80 V
Peak Power: <=10 W
Control Mode: PSDK

Request a Quote WhatsApp

Technical Specifications

Product Size: 125 x 70 x 55 mm
Communication Interface: E-Port-Lite
Control Range: Consistent with drone communication range
Installation Method: Pipe-clamp fixing
Installation Position: Drone crossbar
Dual-Drone Spacing: 10 m
Working Temperature: -20°C to 45°C
Compatible Platform: DJI Cargo Drone Series

Key Features

Dual- and quad-drone cooperative lifting
160 kg / 320 kg catalog-listed max loads
100 m lifting rope
One-click formation and auto-follow functions
Independent return-to-home safety mechanism

Applications

Engineering heavy-load lifting
Emergency-rescue material delivery
Low-altitude logistics
High-altitude transfer of large equipment

Compatibility & Product Matching

Catalog states compatibility with DJI cargo-drone platforms and PSDK integration. Multi-aircraft heavy-lift operations require aircraft-specific operational planning and regulatory compliance.

Need a Product Match or Quote?

Send your drone model, product label, connector photos and quantity. We can help review the requirement before quotation.
