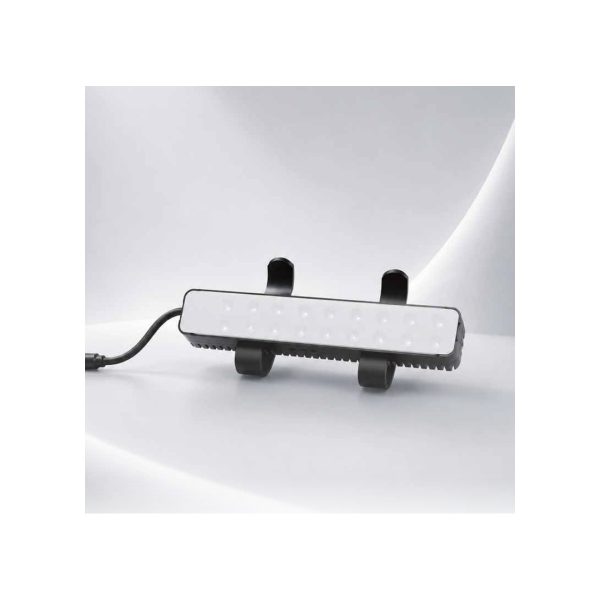

JZI 20000lm Matrix Light for Industrial Drones

An ultra-light high-output lighting payload for night emergency rescue, power inspection, patrol and construction illumination.

Quick Specifications

Luminous Flux: 20000 lm
Weight: Approx. 0.26 kg
Peak Power: 120 W
Input Voltage: 48-80 V
LEDs: 18 lamp beads
Dimming: 0-100%

Request a Quote WhatsApp

Technical Specifications

Dimensions: 205 x 35 x 28 mm
Operating Temperature: -20°C to 45°C
Soft Start: 3-second soft start; maximum power output without control signal
Thermal Protection: Brightness limited to 10% above 80°C; automatic power-off above 85°C
Control Mode: PWM
Mounting: Catalog describes quick-release fixing design

Key Features

20000 lm high-output lighting
Approx. 0.26 kg lightweight design
0-100% stepless dimming
3-second soft start
Automatic thermal protection

Applications

Night emergency-rescue search
Power-line night inspection
Police night patrol and management
Night construction-site lighting

Compatibility & Product Matching

The catalog describes compatibility with various industrial drone platforms but does not list a specific aircraft model on this page. Confirm voltage, PWM control and mounting before ordering.
