ACC-017 · Video Transmission Module

Ground-side wireless + fiber-optic video transmission 4K30 / 4MP60 / 1080p90 / 720p120 encoding Multi-band 4G TDD communication

DF-T838 Ground-Side Control + Video Transmission Module

A ground-side communication module for UAV video links requiring wireless and fiber-optic transmission, high-frame-rate encoding and integrated AI functions.

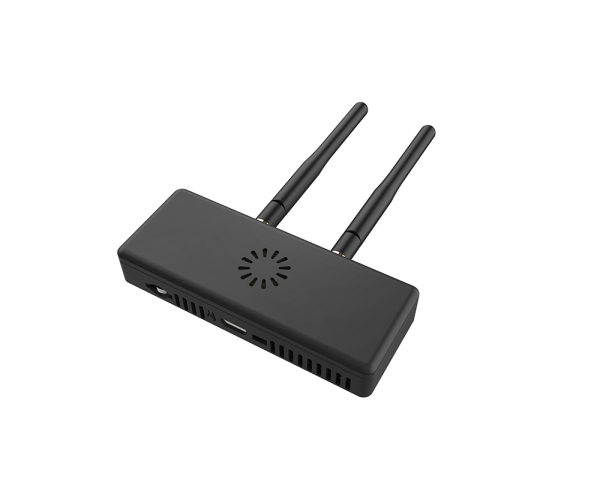

DF-T838 ground-side control and video transmission module

Quick Specifications

Model: DF-T838
Transmission: Wireless + fiber-optic
Image Encoding: 4K30 / 4MP60 / 1080p90 / 720p120
Frequency Bands: 2.38-2.53 / 5.6-6.3 / 1.4-1.5 GHz
Power Supply: 5.5-26 V
Power Consumption: <=6 W

Request a Quote WhatsApp

Technical Specifications

Video Transmission Mode: Wireless video transmission / Fiber-optic video transmission
Image Encoding: 4K @ 30 fps; 4.0MP @ 60 fps; 1080p @ 90 fps; 720p @ 120 fps
Wireless Technology: 4G TDD point-to-point broadband, multi-band, 120+ channels
Fiber-Optic Transmission: Supports 20 / 50 / 80 km fiber-optic links
Frequency Bands: 2.38-2.53 / 5.6-6.3 / 1.4-1.5 GHz
TX Power: >=27 dBm (FCC, catalog value)
Sensitivity: <-103 dBm
AI Functions: AI ISP / Auto-tracking / Auto-recognition / AI intelligent detection
TF Card Slot: Supported
HDMI (Type-C): Supported
Power Supply: 5.5-26 V
Power Consumption: <=6 W

Key Features

Ground-side wireless + fiber-optic video transmission
4K30 / 4MP60 / 1080p90 / 720p120 encoding
Multi-band 4G TDD communication
AI tracking, recognition and detection functions
Type-C/HDMI support

Applications

Seaside environments
Aerial / sky observation
Tunnel environments
Forest environments

Compatibility & Product Matching

Source catalog contains conflicting point-to-point latency values: <40 ms in the feature list and <10 ms in the core parameter table. Confirm latency and radio/regulatory requirements before ordering.
