ACC-016 · Video Transmission Module

Wireless + fiber-optic video transmission 4K30 / 4MP60 / 1080p90 / 720p120 encoding Multi-band 4G TDD link

DF-T836A/B Air-Side Pod + Video Transmission Module

An air-side transmission solution for UAV payloads requiring wireless and fiber-optic video links, high-frame-rate encoding and AI tracking/detection functions.

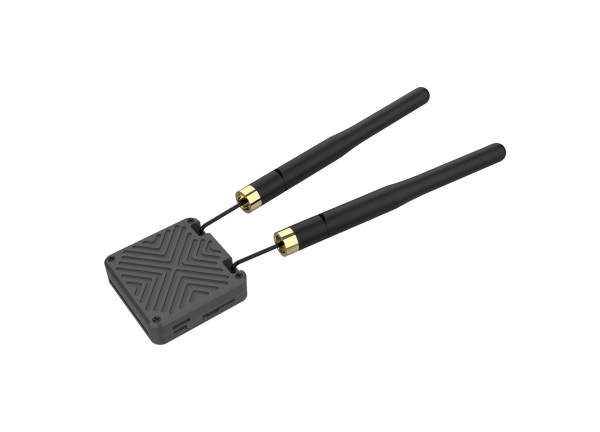

DF-T836A/B air-side pod and video transmission module

Quick Specifications

Model: DF-T836A/B
Transmission: Wireless + fiber-optic
Image Encoding: 4K30 / 4MP60 / 1080p90 / 720p120
Wireless Bands: 2.38-2.53 / 5.6-6.3 / 1.4-1.5 GHz
Wireless Range: Catalog: up to 30 km at 30 MHz, 2 Mbps
Power Consumption: <=6 W

Request a Quote WhatsApp

Technical Specifications

Video Transmission Mode: Wireless video transmission / Fiber-optic video transmission
Image Encoding: 4K @ 30 fps; 4.0MP @ 60 fps; 1080p @ 90 fps; 720p @ 120 fps
Wireless Technology: 4G TDD, multi-band, over 120 channels
Fiber-Optic Transmission: Supports 20 / 50 / 80 km fiber-optic links
Wireless Range: Catalog states 30 km at 30 MHz, 2 Mbps
Frequency Bands: 2.38-2.53 / 5.6-6.3 / 1.4-1.5 GHz
TX Power: >=27 dBm (FCC, catalog value)
Sensitivity: <-103 dBm
Point-to-Point Latency: <10 ms
AI Functions: AI ISP / Auto-tracking / Auto-recognition / AI intelligent detection
TF Card Slot: Supported
Fan: Supported
Power Consumption: <=6 W
Weight: 20 g

Key Features

Wireless + fiber-optic video transmission
4K30 / 4MP60 / 1080p90 / 720p120 encoding
Multi-band 4G TDD link
AI tracking, recognition and detection functions
Supports TF card slot and fan

Applications

Seaside environments
Aerial / sky observation
Tunnel environments
Forest environments

Compatibility & Product Matching

Transmission range depends on radio configuration and operating conditions. Confirm frequency plan, legal/regulatory requirements, antennas and system integration for the target market before ordering.
