ACC-018 · Multi-Sensor Gimbal Payload

Visible + thermal + laser-ranging payload 35X optical zoom with 6-210 mm focal range 640x512 @ 50 fps thermal imaging

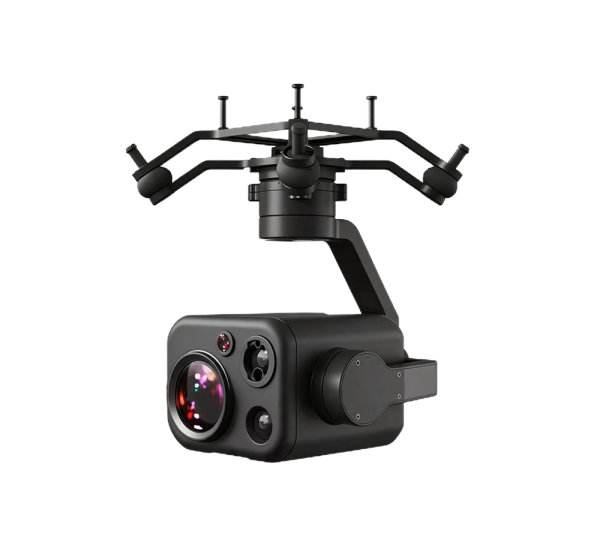

DF-C686-SL Three-Spectrum Four-Lens Gimbal Pod

A multi-sensor UAV payload integrating zoom visible imaging, thermal imaging, laser ranging, AI functions and multiple fusion/display modes.

Quick Specifications

Visible Video Modes: 4K @ 30 fps; 2560x1440 @ 60 fps; 1920x1080 @ 90 fps; 1280x720 @ 90 fps
Visible Sensor: 1/1.8-inch 8.0MP CMOS
Pixel Size: 4 um, BSI
Zoom Lens: 6-210 mm; 35X optical; 16X digital; 560X combined zoom
F-Number: F1.5 near
Panoramic Lens: 4.0MP @ 60 fps, F1.0, 4 mm
Minimum Illumination: Color: 0.001 Lux @ F1.0, AGC ON; B&W: 0.0001 Lux @ F1.0, AGC ON
Thermal Imaging: 640x512 @ 50 fps
Laser Ranging: 3 km, ±1 m
Fusion / Display: Dual-spectrum fusion / Edge fusion / Left-right split view / Picture-in-Picture
AI Functions: AI ISP / Auto-tracking / Auto-recognition / AI intelligent detection
White Balance: Auto / Indoor / Outdoor / Manual
Gimbal Modes: Inverted / Follow / Lock / FPV
Electronic Image Stabilization: Supported

Confirm aircraft mounting, control interface, laser-use requirements and system integration before ordering.

Send your drone model, product label, connector photos and quantity. We can help review the requirement before quotation.
