ACC-020 · Dual-Light Gimbal Payload

10X low-light full-color + thermal imaging 640x512 @ 50 fps thermal channel 5-50 mm visible zoom lens

DF-C683-L Thermal + 10X Low-Light Full-Color Dual-Light Two-Axis Gimbal Pod

A compact UAV dual-light payload integrating 5-50 mm low-light imaging and thermal imaging with electronic stabilization, fusion and picture-in-picture modes.

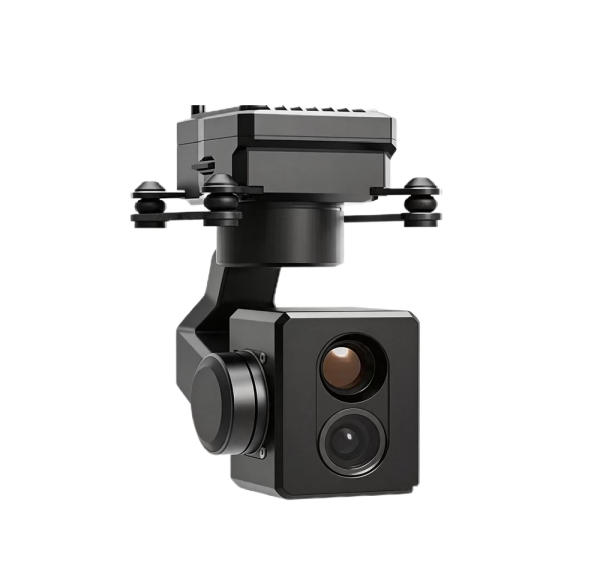

DF-C683-L thermal low-light dual-light gimbal pod

Quick Specifications

Model: DF-C683-L
Visible Sensor: 1/2.5-inch 8MP CMOS
Optical Zoom: 10X, 5-50 mm
Thermal Imaging: 640x512 @ 50 fps
Combined Zoom: 160X
Gimbal Modes: Inverted / Follow / Lock / FPV

Request a Quote WhatsApp

Technical Specifications

Visible Video Modes: 4K @ 30 fps; 2560x1440 @ 60 fps; 1920x1080 @ 90 fps; 1280x720 @ 90 fps
Visible Sensor: 1/2.5-inch 8.0MP CMOS
Pixel Size: 2.5 um, BSI
Focal Length: 5-50 mm; 10X optical (feature list); 160X combined zoom
Aperture: F1.5 near
Field of View: 90° wide (5 mm lens); 10° (50 mm lens)
Minimum Illumination: Color: 0.001 Lux @ F1.0, AGC ON; B&W: 0.0001 Lux @ F1.0, AGC ON
Thermal Imaging: 640x512 @ 50 fps
Fusion / Display: Dual-light fusion / Edge fusion / Left-right screen / Picture-in-Picture
AI Functions: AI ISP / Auto-tracking / Auto-recognition / AI intelligent detection
White Balance: Auto / Indoor / Outdoor / Manual
Gimbal Modes: Inverted / Follow / Lock / FPV
Electronic Image Stabilization: Supported

Key Features

10X low-light full-color + thermal imaging
640x512 @ 50 fps thermal channel
5-50 mm visible zoom lens
AI functions and electronic image stabilization
Dual-light fusion and picture-in-picture modes

Applications

Seaside environments
Aerial / sky observation
Tunnel environments
Forest environments

Compatibility & Product Matching

The core parameter table lists laser ranging of 1.5 km, ±0.5 m, but the catalog title and feature list do not mention a laser-ranging function for DF-C683-L. Laser-ranging capability should be confirmed before ordering and is not presented as a primary product feature here.
