ACC-021 · Multi-Sensor Gimbal Payload

10X low-light full-color + thermal imaging 640x512 @ 50 fps thermal channel 1.5 km laser ranging with ±0.5 m catalog accuracy

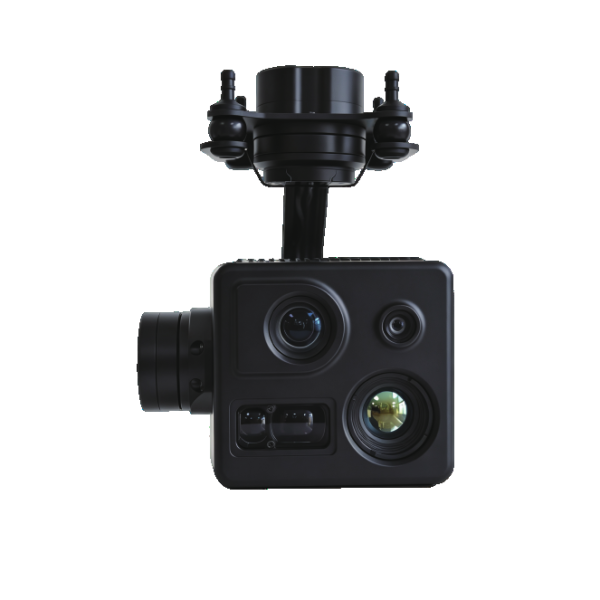

DF-C682-L Thermal + 10X Low-Light Full-Color + 1.5KM Laser Ranging Four-Lens Three-Axis Gimbal Pod

A multi-sensor UAV payload integrating visible zoom, thermal imaging, laser ranging, AI functions, electronic stabilization and fusion modes.

Quick Specifications

Visible Video Modes: 4K @ 30 fps; 2560x1440 @ 60 fps; 1920x1080 @ 90 fps; 1280x720 @ 90 fps
Visible Sensor: 1/2.5-inch 8.0MP CMOS
Pixel Size: 2.5 um, BSI
Focal Length: 5-50 mm; 10X optical; 160X combined zoom
Aperture: F1.5 near
Field of View: 90° wide (5 mm lens); 10° (50 mm lens)
Minimum Illumination: Color: 0.001 Lux @ F1.0, AGC ON; B&W: 0.0001 Lux @ F1.0, AGC ON
Thermal Imaging: 640x512 @ 50 fps
Laser Ranging: 1.5 km, ±0.5 m
Fusion / Display: Dual-light fusion / Edge fusion / Left-right screen / Picture-in-Picture
AI Functions: AI ISP / Auto-tracking / Auto-recognition / AI intelligent detection
White Balance: Auto / Indoor / Outdoor / Manual
Gimbal Modes: Inverted / Follow / Lock / FPV
Electronic Image Stabilization: Supported

Confirm aircraft mounting, control interface, laser-use requirements and system integration before ordering.

Send your drone model, product label, connector photos and quantity. We can help review the requirement before quotation.
