ACC-013 · Dual-Spectrum Camera Module

Visible + thermal dual-spectrum imaging 640x512 @ 50 fps thermal channel 1080p90 / 720p120 visible channel

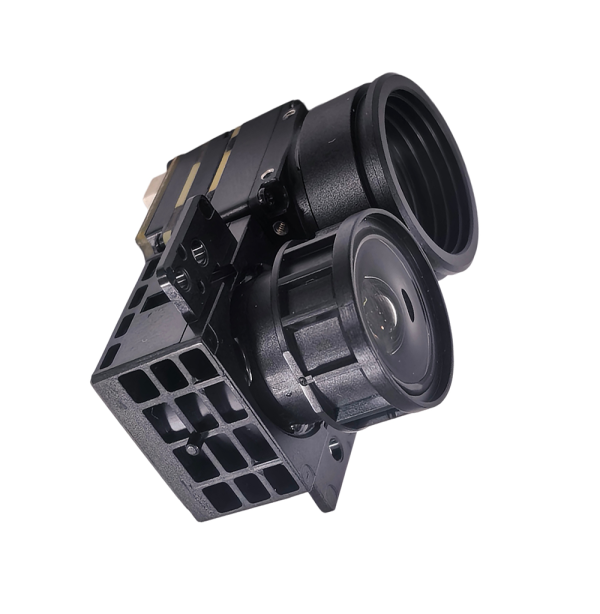

DF-C663-SL Thermal + Starlight Dual-Spectrum Camera Module

A dual-spectrum UAV imaging module integrating low-light full-color and thermal channels with fusion, picture-in-picture and dual-view display modes.

Quick Specifications

Visible Video Modes: 1920x1080 @ 90 fps; 1280x720 @ 120 fps
Visible Sensor: 1/1.8-inch 2.0MP CMOS
Pixel Size: 4.0 um, BSI
Focal Length: 4 mm
F-Number: F1.0
Field of View: 150° wide (4 mm lens, catalog value)
Minimum Illumination: Color: 0.001 Lux @ F1.0, AGC ON; B&W: 0.0001 Lux @ F1.0, AGC ON
Wide Dynamic Range: Supported, >=120 dB
Thermal Imaging: 640x512 @ 50 fps
Thermal Pixel: 12 um
Dual-Spectrum Modes: Dual-spectrum fusion / Edge fusion / Picture-in-Picture / Dual-view display
Dimensions: 21 x 42 x 35 mm

Confirm visible/thermal output integration and mounting requirements before ordering.

Send your drone model, product label, connector photos and quantity. We can help review the requirement before quotation.
