ACC-014 · Dual-Spectrum Gimbal Payload

Visible + thermal dual-spectrum imaging 384x288 @ 50 fps thermal channel 1080p90 / 720p120 visible channel

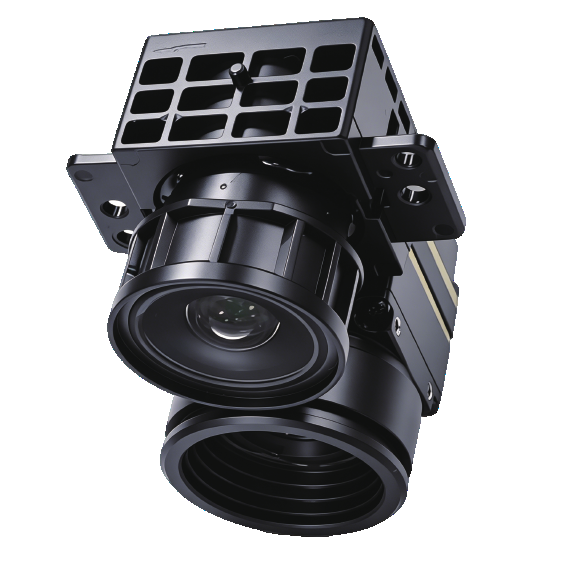

DF-C661-SL Thermal + Starlight Dual-Spectrum Gimbal Pod

A dual-spectrum UAV payload integrating low-light full-color and thermal imaging with fusion, edge fusion, picture-in-picture and dual-view display.

Quick Specifications

Model: DF-C661-SL
Visible Sensor: 1/1.8-inch 2.0MP CMOS
Visible Lens: 4 mm F1.0
Thermal Imaging: 384x288 @ 50 fps
Thermal Pixel: 12 um
Dimensions: 21 x 42 x 35 mm

Request a Quote WhatsApp

Technical Specifications

Visible Video Modes: 1920x1080 @ 90 fps; 1280x720 @ 120 fps
Visible Sensor: 1/1.8-inch 2.0MP CMOS
Pixel Size: 4.0 um, BSI
Focal Length: 4 mm
F-Number: F1.0
Field of View: 150° wide (4 mm lens, catalog value)
Minimum Illumination: Color: 0.001 Lux @ F1.0, AGC ON; B&W: 0.0001 Lux @ F1.0, AGC ON
Wide Dynamic Range: Supported, >=120 dB
Thermal Imaging: 384x288 @ 50 fps
Thermal Pixel: 12 um
Dual-Spectrum Modes: Dual-spectrum fusion / Edge fusion / Picture-in-Picture / Dual-view display
Dimensions: 21 x 42 x 35 mm

Key Features

Visible + thermal dual-spectrum imaging
384x288 @ 50 fps thermal channel
1080p90 / 720p120 visible channel
Dual-spectrum fusion and picture-in-picture
Compact 21 x 42 x 35 mm UAV structure

Applications

Seaside environments
Aerial / sky observation
Tunnel environments
Forest environments

Compatibility & Product Matching

Catalog calls this product a gimbal pod but does not provide gimbal-axis travel specifications. Confirm mechanical/gimbal integration before ordering.
