ACC-015 · Thermal Imaging Module

Up to 1280x1024 thermal imaging 12 um pixel pitch Multiple focal-length options from 19 mm to 75 mm

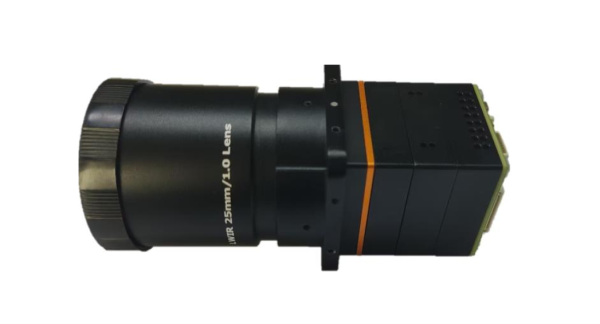

DF-C656 1280x1024 12um Thermal Imaging Module

A thermal payload module for applications requiring up to 1280x1024 resolution, interchangeable focal-length options and multiple digital output interfaces.

Quick Specifications

Model: DF-C656
Thermal Resolution: 1280x1024; core table also lists 1280x720
Pixel Pitch: 12 um
Lens Options: 19 / 25 / 35 / 55 / 75 mm; 25 mm default
Output: CameraLink / DVP / MIPI
Power Consumption: <=1.2 W (core table)

Request a Quote WhatsApp

Technical Specifications

Thermal Resolution: Feature list: 1280x1024; core table: 1280x1024 / 1280x720
Pixel Pitch: 12 um
Focal Length: 25 mm default; 19 / 25 / 35 / 55 / 75 mm optional
F-Number: F1.0
Field of View: 48.1° x 38.4° (catalog value)
Thermal Sensitivity: NETD <=50 mK @ F1.0
Spectral Response: 8-14 um
Output Interface: CameraLink / DVP / MIPI @ 25/30/50 Hz
Power Consumption: <=1.2 W in core table
Image Modes: White Hot / Black Hot / Iron Red / Micro Color and other modes
Dimensions: 51 x 51 x 29 mm

Key Features

Up to 1280x1024 thermal imaging
12 um pixel pitch
Multiple focal-length options from 19 mm to 75 mm
CameraLink / DVP / MIPI interfaces
Multiple false-color image modes

Applications

Seaside environments
Aerial / sky observation
Tunnel environments
Forest environments

Compatibility & Product Matching

Source catalog contains a weight/lens inconsistency: the feature list states 58 g without lens, while the core table states 58 g with 9 mm lens even though 25 mm is listed as default. The feature list also gives a separate 50 fps power figure that is unclear. Confirm weight and high-frame-rate power requirements before ordering.
