TG Drone Parts

ACC-010 · Camera Module

1920x1080 up to 90 fps 1280x720 up to 120 fps F0.8 large-aperture lens

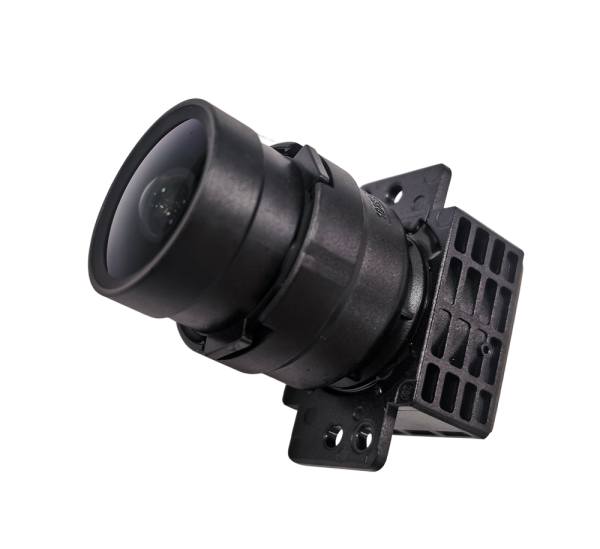

DF-C618-SL 1080p Black Light Full-Color Camera Module

A compact UAV camera module for high-frame-rate full-color low-light imaging with MIPI output and >=120 dB wide dynamic range.

DF-C618-SL black light full-color camera module

Quick Specifications

Model
DF-C618-SL
Image Sensor
1/1.8-inch 2.0MP CMOS
Lens
4 mm
Aperture
F0.8
Video Output
MIPI
WDR
>=120 dB
Request a Quote WhatsApp

Technical Specifications

Video Modes
1920x1080 @ 90 fps; 1280x720 @ 120 fps
Image Sensor
1/1.8-inch 2.0MP CMOS
Pixel Size
4.0 um, BSI
Focal Length
4 mm
F-Number
F0.8
Field of View
Catalog table: 150° with 2.8 mm lens; 110° with 4 mm lens
Minimum Illumination
Color: 0.001 Lux @ F1.0, AGC ON; B&W: 0.0001 Lux @ F1.0, AGC ON
Wide Dynamic Range
Supported, >=120 dB
White Balance
Auto / Indoor / Outdoor / Manual
Video Output
MIPI
Frame Rates
120 / 90 / 60 / 50 / 30 / 25 fps
Dimensions
21 x 21 x 40 mm
Operating Environment
-40°C to 75°C; 0%-90% RH, non-condensing

Key Features

  • 1920x1080 up to 90 fps
  • 1280x720 up to 120 fps
  • F0.8 large-aperture lens
  • AI ISP proprietary noise-reduction algorithm
  • MIPI output and >=120 dB WDR

Applications

  • Seaside environments
  • Aerial / sky observation
  • Tunnel environments
  • Forest environments

Compatibility & Product Matching

Catalog title uses the term "Analog Module," while its core parameter table lists MIPI video output. Confirm the required interface before ordering.

Related Products

Need a Product Match or Quote?

Send your drone model, product label, connector photos and quantity. We can help review the requirement before quotation.
