ACC-011 · Camera Module

1920x1080 up to 90 fps 1280x720 up to 120 fps F1.0 large-aperture lens

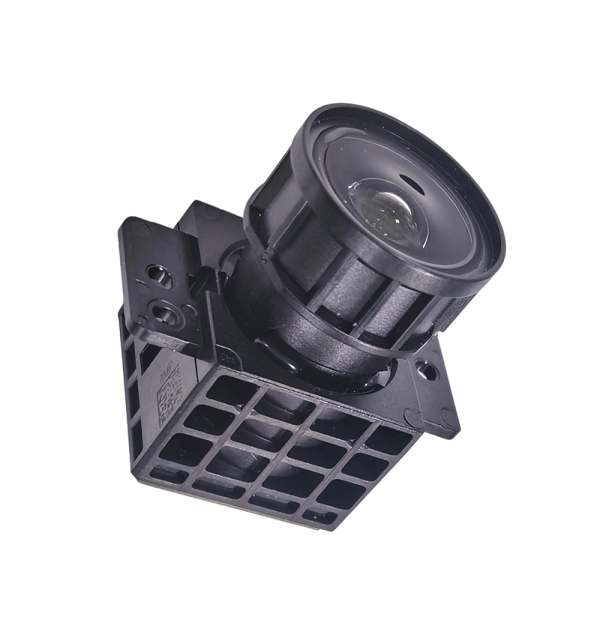

DF-C616-SL 1080p Black Light Full-Color Camera Module

A UAV camera module for full-color low-light imaging with MIPI output, wide dynamic range and a compact 21 x 21 mm mounting structure.

DF-C616-SL black light full-color camera module

Quick Specifications

Model
DF-C616-SL
Image Sensor
1/1.8-inch 2.0MP CMOS
Lens
4 mm
Aperture
F1.0
Video Output
MIPI
WDR
>=120 dB
Request a Quote WhatsApp

Technical Specifications

Video Modes
1920x1080 @ 90 fps; 1280x720 @ 120 fps
Image Sensor
1/1.8-inch 2.0MP CMOS
Pixel Size
4.0 um, BSI
Focal Length
4 mm
F-Number
F1.0
Field of View
150° wide (catalog value)
Minimum Illumination
Color: 0.001 Lux @ F1.0, AGC ON; B&W: 0.0001 Lux @ F1.0, AGC ON
Wide Dynamic Range
Supported, >=120 dB
White Balance
Auto / Indoor / Outdoor / Manual
Video Output
MIPI
Frame Rates
120 / 90 / 60 / 50 / 30 / 25 fps
Dimensions
21 x 21 x 40 mm
Operating Environment
-40°C to 75°C; 0%-90% RH, non-condensing

Key Features

  • 1920x1080 up to 90 fps
  • 1280x720 up to 120 fps
  • F1.0 large-aperture lens
  • AI ISP proprietary noise-reduction algorithm
  • MIPI output and >=120 dB WDR

Applications

  • Seaside environments
  • Aerial / sky observation
  • Tunnel environments
  • Forest environments

Compatibility & Product Matching

Catalog title uses the term "Analog Module," while its core parameter table lists MIPI video output. Confirm the required interface before ordering.
