TG Drone Parts

ACC-012 · Camera Module

4K video up to 30 fps 2560x1440 and 1080p high-frame-rate modes 1/2.5-inch 4K CMOS sensor

DF-C611-SL 4K Starlight Full-Color Camera Module

A compact UAV camera module for 4K and high-frame-rate full-color imaging with AI ISP processing and 96 dB wide dynamic range.

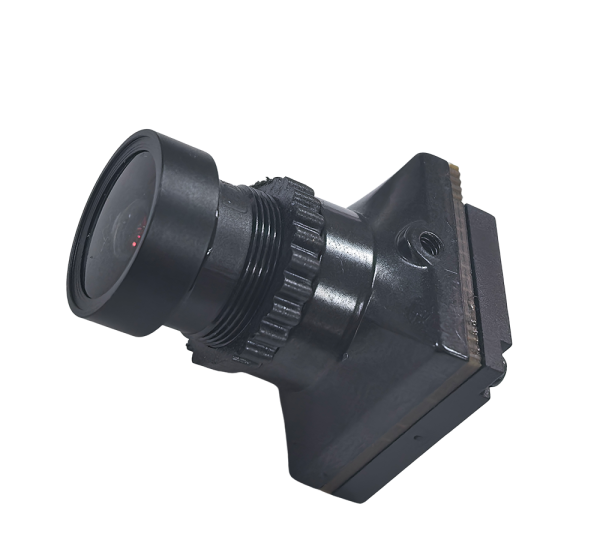

DF-C611-SL 4K starlight full-color camera module

Quick Specifications

Model
DF-C611-SL
Image Sensor
1/2.5-inch 4K CMOS
Focal Length
2.8 mm
Aperture
F1.0
Video Output
MIPI
WDR
>=96 dB
Request a Quote WhatsApp

Technical Specifications

Video Modes
4K @ 30 fps; 2560x1440 @ 60 fps; 1920x1080 @ 60 fps
Image Sensor
1/2.5-inch 4K CMOS
Pixel Size
2.5 um, BSI
Focal Length
2.8 mm
F-Number
F1.0
Field of View
150° wide (catalog value)
Minimum Illumination
Color: 0.001 Lux @ F1.0, AGC ON; B&W: 0.0001 Lux @ F1.0, AGC ON
Wide Dynamic Range
Supported, >=96 dB
White Balance
Auto / Indoor / Outdoor / Manual
Video Output
MIPI
Supported Frame Rates
60 / 50 / 30 / 25 fps
Dimensions
21 x 21 x 40 mm
Operating Environment
-40°C to 75°C; 0%-90% RH, non-condensing

Key Features

  • 4K video up to 30 fps
  • 2560x1440 and 1080p high-frame-rate modes
  • 1/2.5-inch 4K CMOS sensor
  • F1.0 2.8 mm lens
  • AI ISP processing and MIPI output

Applications

  • Seaside environments
  • Aerial / sky observation
  • Tunnel environments
  • Forest environments

Compatibility & Product Matching

Confirm video mode, interface and mechanical integration requirements before ordering.
