BAT-006 · Drone Battery

Herewin 6S1P 22.2V 22Ah Soft Pack UAV Battery

Lightweight 6S1P soft pack UAV battery with 22.2V nominal voltage, 22Ah capacity, 10C discharge capability and >=800-cycle life, designed for inspection, mapping, patrol, training and other light-load UAV applications.

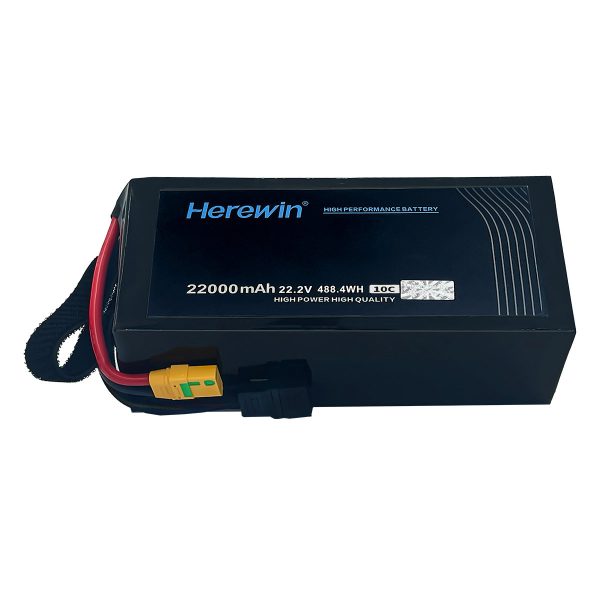

Herewin 6S1P 22.2V 22Ah soft pack UAV battery

Quick Specifications

Model
T9290190K
Configuration
6S1P
Nominal Voltage
22.2V
Capacity
22Ah / 22000mAh
Discharge Rate
10C
Cycle Life
>=800 cycles
Request a Quote WhatsApp

Technical Specifications

Model
T9290190K
Configuration
6S1P
Nominal Voltage
22.2V
Capacity
22Ah / 22000mAh
Battery Type
Soft Pack UAV Battery
Discharge Rate
10C
Max. Charging Current
1C
Cycle Life
>=800 cycles
Net Weight
2200g +/-100g
Dimensions
61 x 95 x 208 mm
Recommended Connectors
XT90S / AS150U / QS8, customizable

Key Features

  • Soft pack UAV battery
  • 10C discharge capability
  • 1C maximum charging current
  • >=800-cycle life
  • Designed for light-load UAV applications

Applications

  • Inspection and mapping drones
  • Surveillance and patrol drones
  • Training drones
  • Light route mission UAVs
