CHG-002 · Branded Product

Maximum Output Power: 3000W Maximum Charging Current: 50A Channels: Dual Channel / 2CH Max. Supported Battery: 20S / 50A (14S–20S range) Key Dual-Battery Application: 2 × 18S batteries simultaneously Supported Battery Range: 14S–20S

EV-PEAK UD2 3000W 50A Dual-Channel Intelligent UAV Battery Charger

EV-PEAK UD2 3000W 50A dual-channel intelligent charger for 14S–20S LiPo, LiHV and smart UAV batteries, with Bluetooth control and voice status.

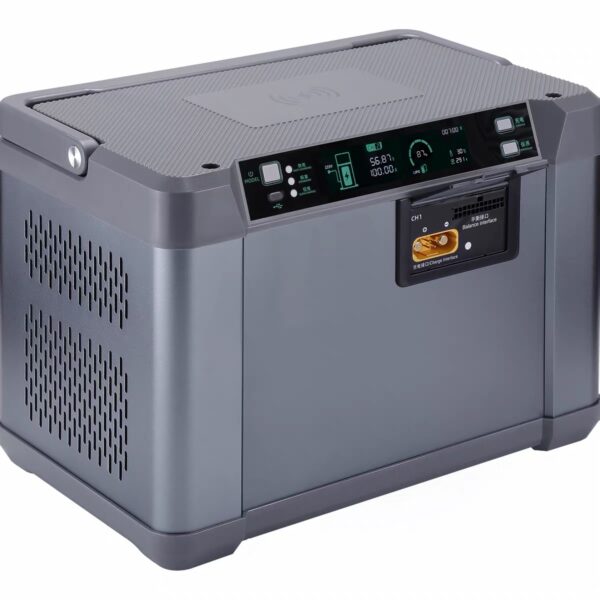

EV-PEAK UD2 3000W 50A dual-channel UAV battery charger

Quick Specifications

Maximum Output Power: 3000W
Maximum Charging Current: 50A
Channels: Dual Channel / 2CH
Max. Supported Battery: 20S / 50A (14S–20S range)
Key Dual-Battery Application: 2 × 18S batteries simultaneously
Supported Battery Range: 14S–20S

Request a Quote WhatsApp

Technical Specifications

Maximum Output Power: 3000W
Maximum Charging Current: 50A
Channels: Dual Channel / 2CH
Max. Supported Battery: 20S / 50A (14S–20S range)
Key Dual-Battery Application: 2 × 18S batteries simultaneously
Supported Battery Range: 14S–20S
AC Input: 100–240V AC
Maximum DC Output: 87.0V / 50A
Output at 100–180V AC Input: Max. 1500W
Output at 180–240V AC Input: Max. 3000W
Battery Types: LiPo / LiHV / Smart Battery
Battery Cell Count: 14S–20S
Balance Accuracy: ±20mV
Working Temperature: 5–40°C
Cooling: Forced Air Cooling
Dimensions: 300 × 180 × 215mm
Weight: Approx. 7kg (official sources differ around 6.8–7.1kg)

Key Features

Maximum Output Power: 3000W
Maximum Charging Current: 50A
Channels: Dual Channel / 2CH
Max. Supported Battery: 20S / 50A (14S–20S range)
Key Dual-Battery Application: 2 × 18S batteries simultaneously
Supported Battery Range: 14S–20S

Applications

Agricultural drone batteries
High-voltage UAV battery packs
Heavy-lift UAV battery systems
Professional drone fleet charging

Compatibility & Product Matching

Confirm the relevant battery, aircraft, connector and operating requirements before ordering.

Commercial Details

Warranty: 1 year
MOQ: No MOQ

Need a Product Match or Quote?

Send your drone model, product label, connector photos and quantity. We can help review the requirement before quotation.
